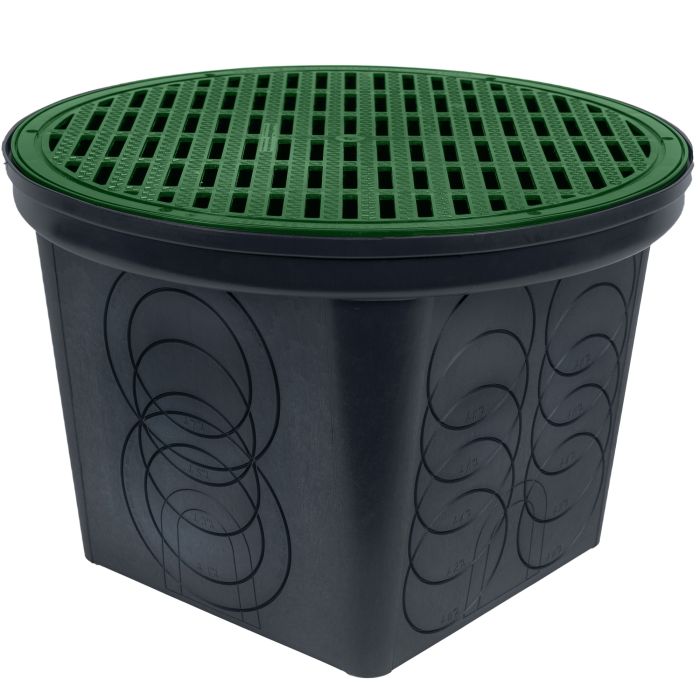

2-Pack StormDrain FSD-3017-20BKIT-6 20 in. Large Round Catch Basin with Grate Kit

Name: 2-Pack StormDrain FSD-3017-20BKIT-6 20 in. Large Round Catch Basin with Grate Kit
Brand: StormDrain
SKU: FSD-3017-20BKIT-6-GRN-2PK
Price: 279.99 USD
Availability: InStock

Be the first to review this product

Save $39.00

Special Price $279.99 Regular Price $318.99

In stock

SKU

FSD-3017-20BKIT-6-GRN-2PK

FREE Shipping!

Features

2-Pack catch basin kits
Accepts 6", 4", 3" & 2" pipe.
Accepts risers to bring to grade
Capacity:12 U.S. Gallons, Weight: 11.53 lbs
Kit includes: 2 Basins, 2 Grates, and 8 Adapters/Seals for 4", 3" and 2" pipe, 4 Adapters/Seals for 6" pipe
Pipe can be installed at various heights
Made of heavy duty polyethylene
Easy to install
Dimensions: 22.9"l x 22.9"w x 16.4"h

View full product details

Details

StormDrain FSD-3017-20BKIT-6-GRN 20 in. Large Round Catch Basin with Green Grate Kit, 2-Pack
Remove unwanted stormwater with the large round 20-in. storm drain catch basin. This 2-pack is easily the most versatile catch basin on the market. The 20-in catch basin drain box is great for large applications such as golf courses, but is also a suitable size for the home. The basin accepts 6-in, 4-in, 3-in and 2-in plastic or corrugated pipe. The 20-in Drain Box will also accept up to three 6-in. risers (FSD-3009) so you can easily bring the Drain Box to grade. Pipe can be installed at various heights. Kit includes basin, grate, (4) adapters for 2-in, 3-in, or 4-in, (2) adapters for 6-in pipe. Class A Load Rating recommended for pedestrian, bicycles and wheel chair traffic.

Applications:

Use as Rain Drain, D-Box, or Drop Box; allows for all configurations
Use as a rain drain for gutters, driveways & sub surface drainage
Use as a distribution box or drop box for onsite septic systems
Use with the riser to bring cover or grate to grade as needed
Accepts 2’’, 3’’, 4’’ Sch. 40, S&D and corrugated pipe
Four stabilizing feet with our 12” D-Box

Installation Instructions:

Carefully cut out required opening in the box with a knife.
Install seal from INSIDE the box.
Screw on the nut from OUTSIDE the box.
Tighten to provide a watertight seal.
Remove the correct size tear out on the seal. TEAR OUT- DO NOT CUT OUT.
Slide the pipe into the seal.
Snap the stabilizing feet into the sockets at the base of the box. (12" only)

Additional Accessories
FSD-3001 (4” D-Box Seal and Nut)
FSD-3001-6/3001-N6 (6” D-Box Seal and Nut)
FSD-3017-G20B (20” Round basin grate)
FSD-3009RC (20” Round Basin Solid Lid)

More Information

More Information
Manufacturer	StormDrain
Model	FSD-3017-20BKIT-6-GRN-2PK
Availability	In Stock
Shape	Round
Basin Size	20"
Product Dimensions	22.9"l x 22.9"w x 16.4"h
Finish / Color	Green
