StormDrain FSD-3017-20BKIT-6-GRN 20 in. Large Round Catch Basin with Green Grate and Black Basin Kit

Rating:
100 % of 100
Save $17.00
Special Price $155.99 Regular Price $172.99
In stock
SKU
FSD-3017-20BKIT-6-GRN
FREE Shipping!

Features

  • Accepts 6", 4", 3" & 2" pipe.
  • Easy to install
  • Accepts risers to bring to grade
  • Capacity:12 U.S. Gallons, Weight: 11.53 lbs

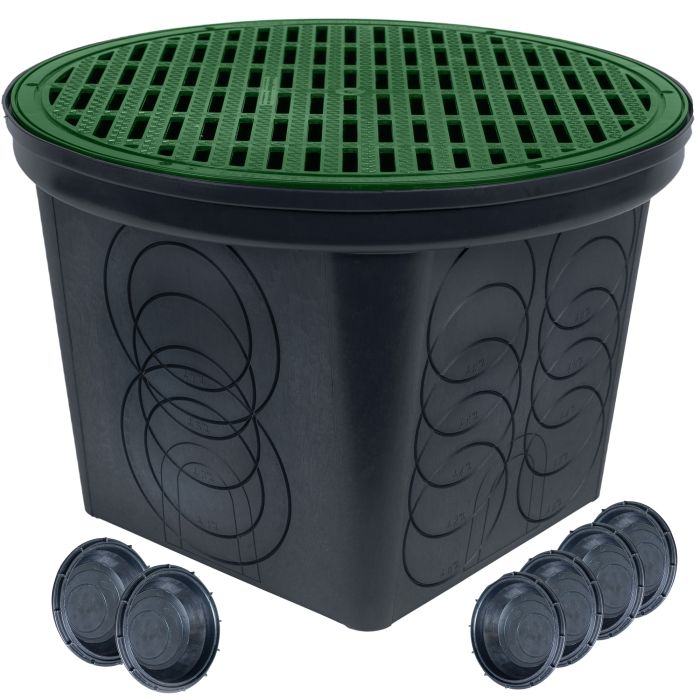

  • Kit includes: Basin, Grate, and 4 Adapters/Seals for 4", 3" and 2" pipe, 2 Adapters/Seals for 6" pipe
  • Pipe can be installed at various heights
  • Made of heavy duty polyethylene
  • Dimensions: 22.9"l x 22.9"w x 16.4"h

StormDrain FSD-3017-20BKIT-6-GRN 20 in. Large Round Catch Basin with Green Grate Kit
Easily the most versatile catch basin on the market, this 20-in catch basin drain box is great for large applications such as golf courses, but is also a suitable size for the home. The basin with green grate accepts 6-in, 4-in, 3-in and 2-in plastic or corrugated pipe. The 20-in Drain Box will also accept up to three 6-in. risers (FSD-3009) so you can easily bring the Drain Box to grade. Pipe can be installed at various heights. Kit includes basin, grate, (4) adapters for 2-in, 3-in, or 4-in, (2) adapters for 6-in pipe. Class A Load Rating recommended for pedestrian, bicycles and wheel chair traffic.

Applications:

  • Use as Rain Drain, D-Box, or Drop Box; allows for all configurations
  • Use as a rain drain for gutters, driveways & sub surface drainage
  • Use as a distribution box or drop box for onsite septic systems
  • Use with the riser to bring cover or grate to grade as needed
  • Accepts 2’’, 3’’, 4’’and 6" Sch. 40, S&D and corrugated pipe
  • Four stabilizing feet with our 12” D-Box

Installation Instructions:

  1. Carefully cut out required opening in the box with a knife.
  2. Install seal from INSIDE the box.
  3. Screw on the nut from OUTSIDE the box.
  4. Tighten to provide a watertight seal.
  5. Remove the correct size tear out on the seal. TEAR OUT- DO NOT CUT OUT.
  6. Slide the pipe into the seal.
  7. Snap the stabilizing feet into the sockets at the base of the box. (12" only)

Additional Accessories
FSD-3001 (4” D-Box Seal and Nut)
FSD-3001-6/3001-N6 (6” D-Box Seal and Nut)
FSD-3017-G20B (20” Round basin grate)
FSD-3009RC (20” Round Basin Solid Lid)

More Information
Manufacturer StormDrain
Model FSD-3017-20BKIT-6-GRN
Availability In Stock
Shape Round
Basin Size 20"
Finish / Color Green
